Architecture and Directory Structure

This section describes only the directory structure and module relationships of the released version, and does not involve the internal implementation in /src.

Top-level Directory Structure (Summary)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
β”œβ”€ demo/
β”‚  β”œβ”€ zsl-1/
β”‚  β”‚  β”œβ”€ cpp/
β”‚  β”‚  └─ python/
β”‚  └─ zsl-1w/
β”‚     β”œβ”€ cpp/
β”‚     └─ python/
β”œβ”€ include/
β”‚  β”œβ”€ zsl-1/
β”‚  β”‚  β”œβ”€ highlevel.h
β”‚  β”‚  └─ lowlevel.h
β”‚  β”œβ”€ zsl-1w/
β”‚  β”‚  └─ highlevel.h
β”‚  β”œβ”€ lowlevel/
β”‚  β”‚  └─ lowlevel.h
β”œβ”€ lib/
β”‚  β”œβ”€ zsl-1/
β”‚  β”‚  β”œβ”€ aarch64/
β”‚  β”‚  └─ x86_64/
β”‚  β”œβ”€ zsl-1w/
β”‚  β”‚  β”œβ”€ aarch64/
β”‚  β”‚  └─ x86_64/

Key directory descriptions:

  • include/: Header files (public headers and model-specific headers)

    • include/zsl-1/highlevel.h, include/zsl-1/lowlevel.h
    • include/zsl-1w/highlevel.h

  • lib/: Compiled runtime libraries (separated by model and architecture)

    • lib/<model>/<arch>/libmc_sdk_<model>_<arch>.so
    • lib/<model>/<arch>/mc_sdk_<model>_py.*.so (Python extension)

  • demo/: Sample programs (C++ / Python)

    • demo/zsl-1/cpp, demo/zsl-1/python/examples
    • demo/zsl-1w/cpp, demo/zsl-1w/python/examples
  • Other: CMakeLists.txt, build.sh, README.md, etc.

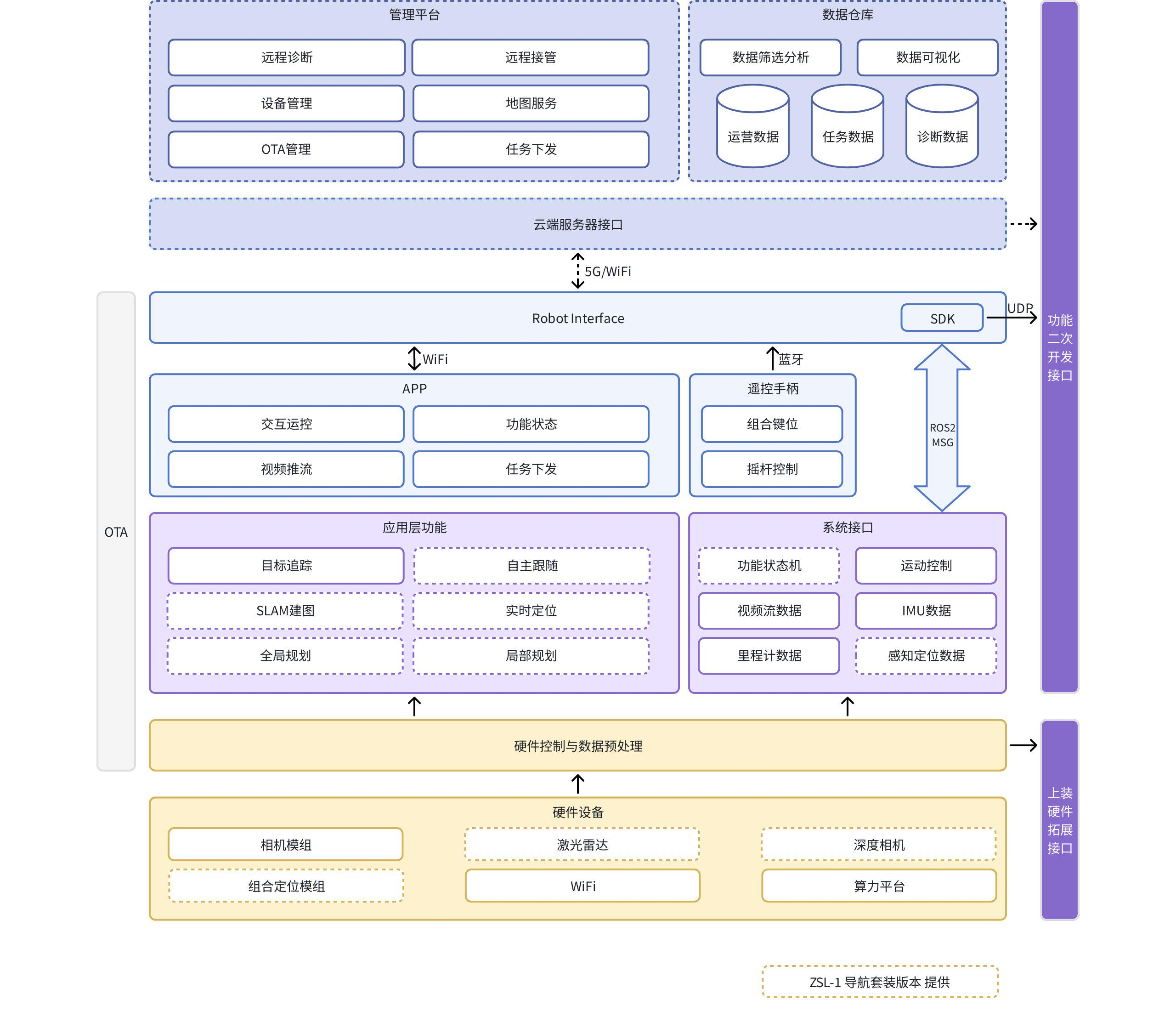

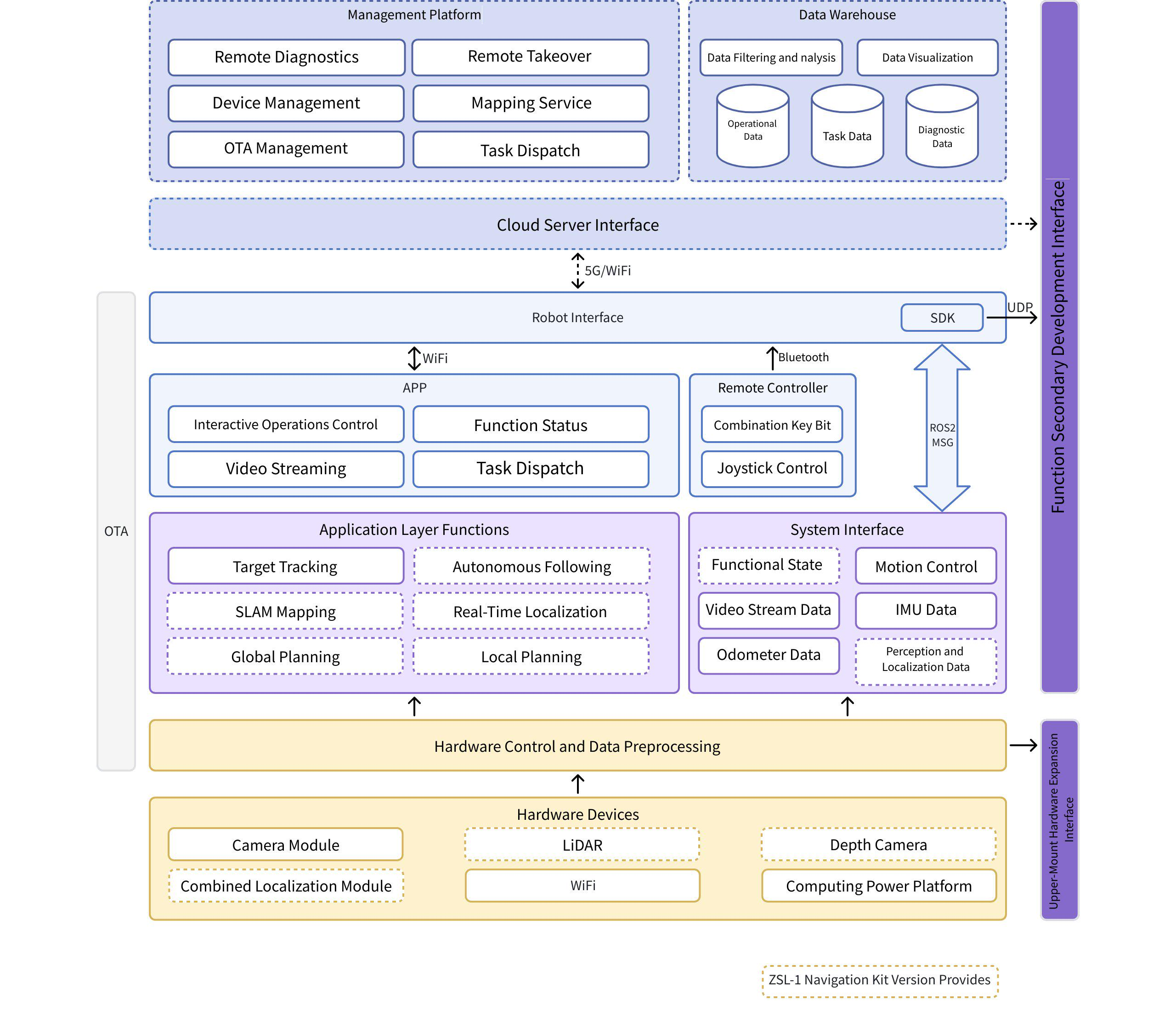

ZsiBot System Architecture

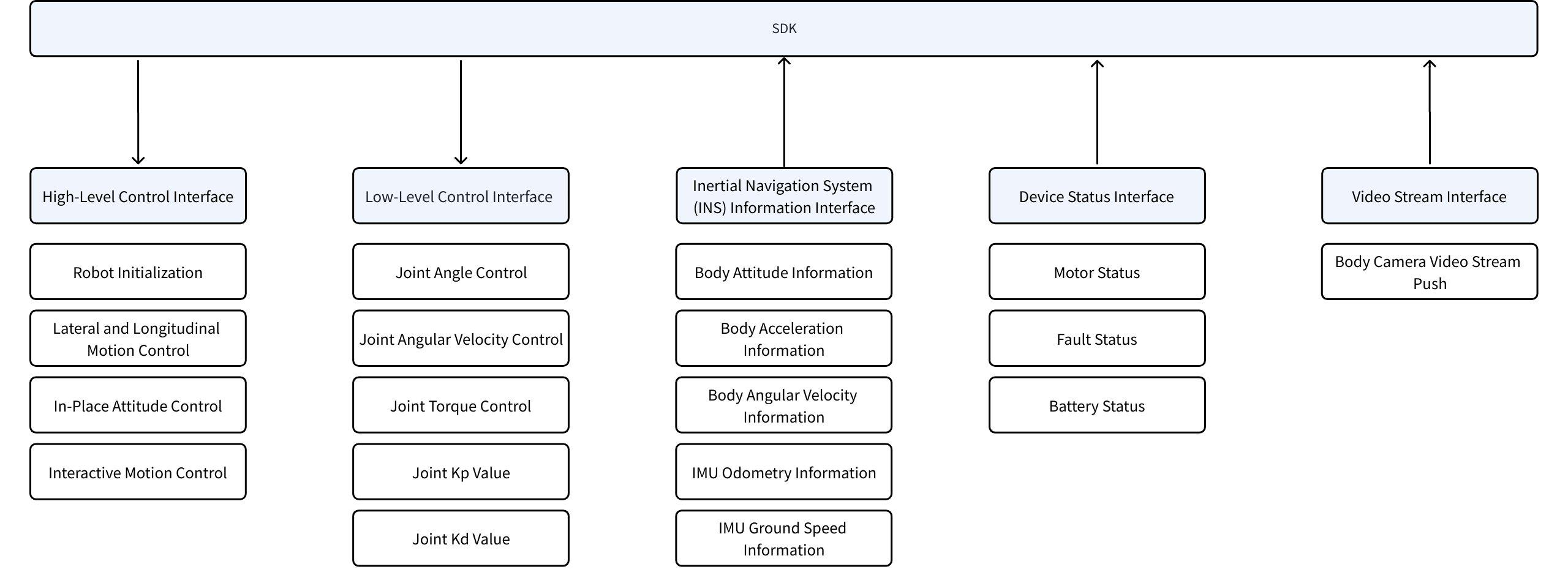

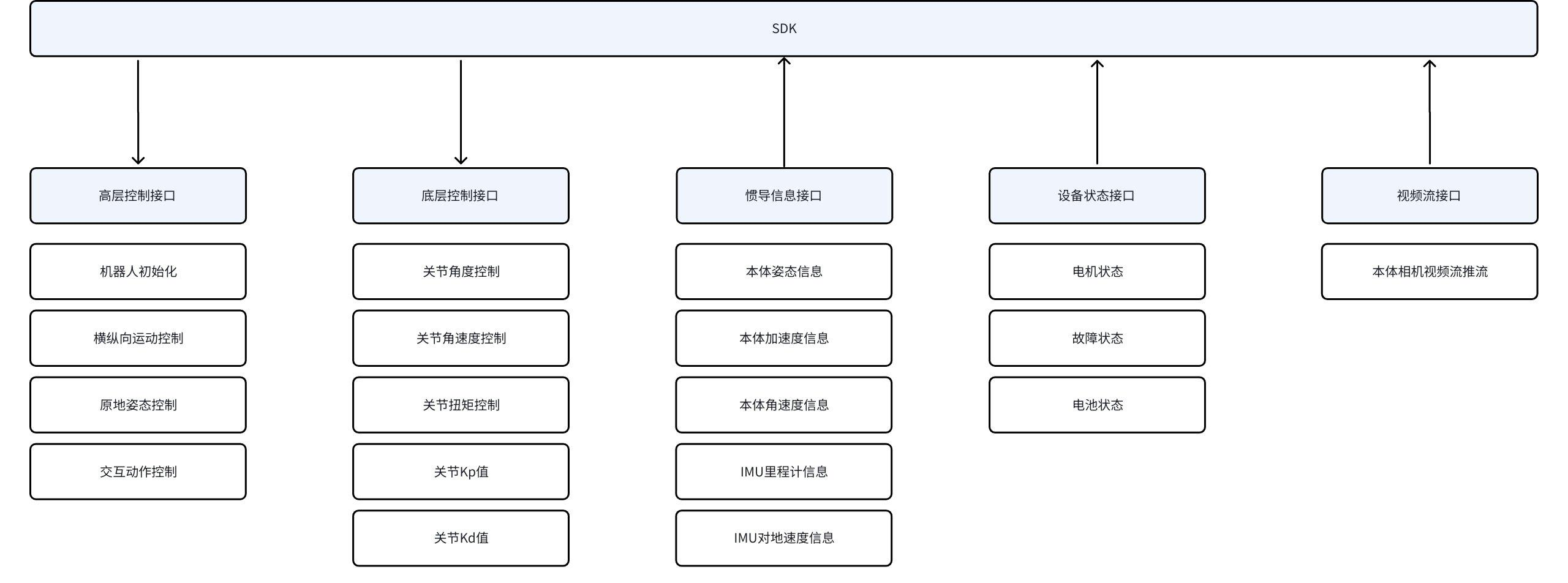

SDK Software Block Diagram

Currently, motion control-related SDK interfaces are open, including high-level motion control interfaces, low-level motor control interfaces, IMU inertial data interfaces, and motor status data interfaces

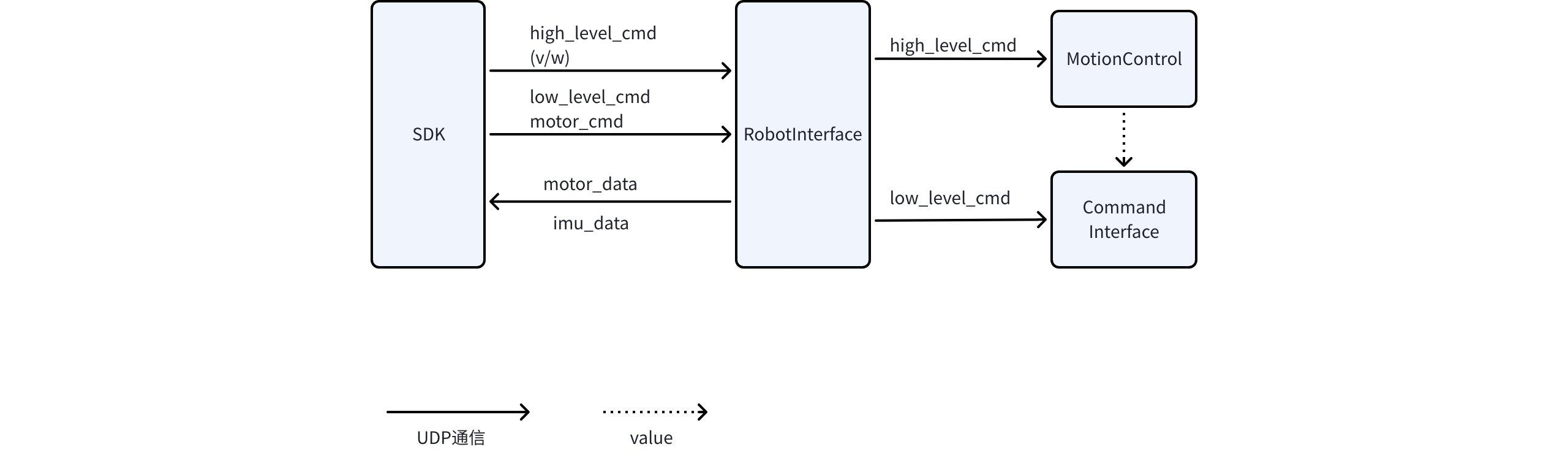

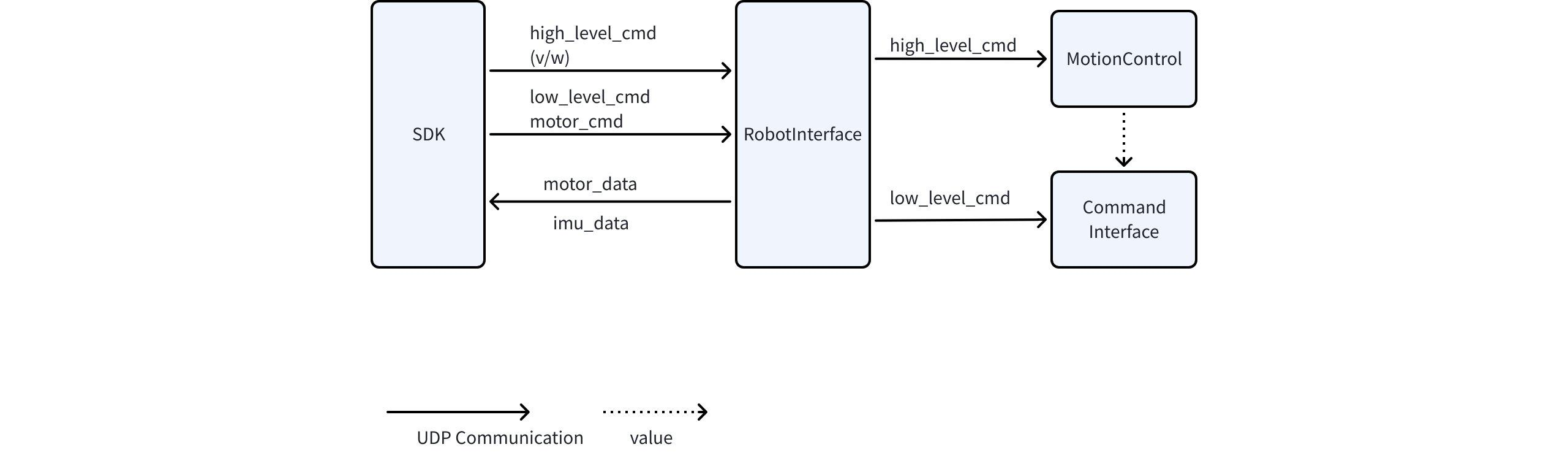

SDK Software Interfaces

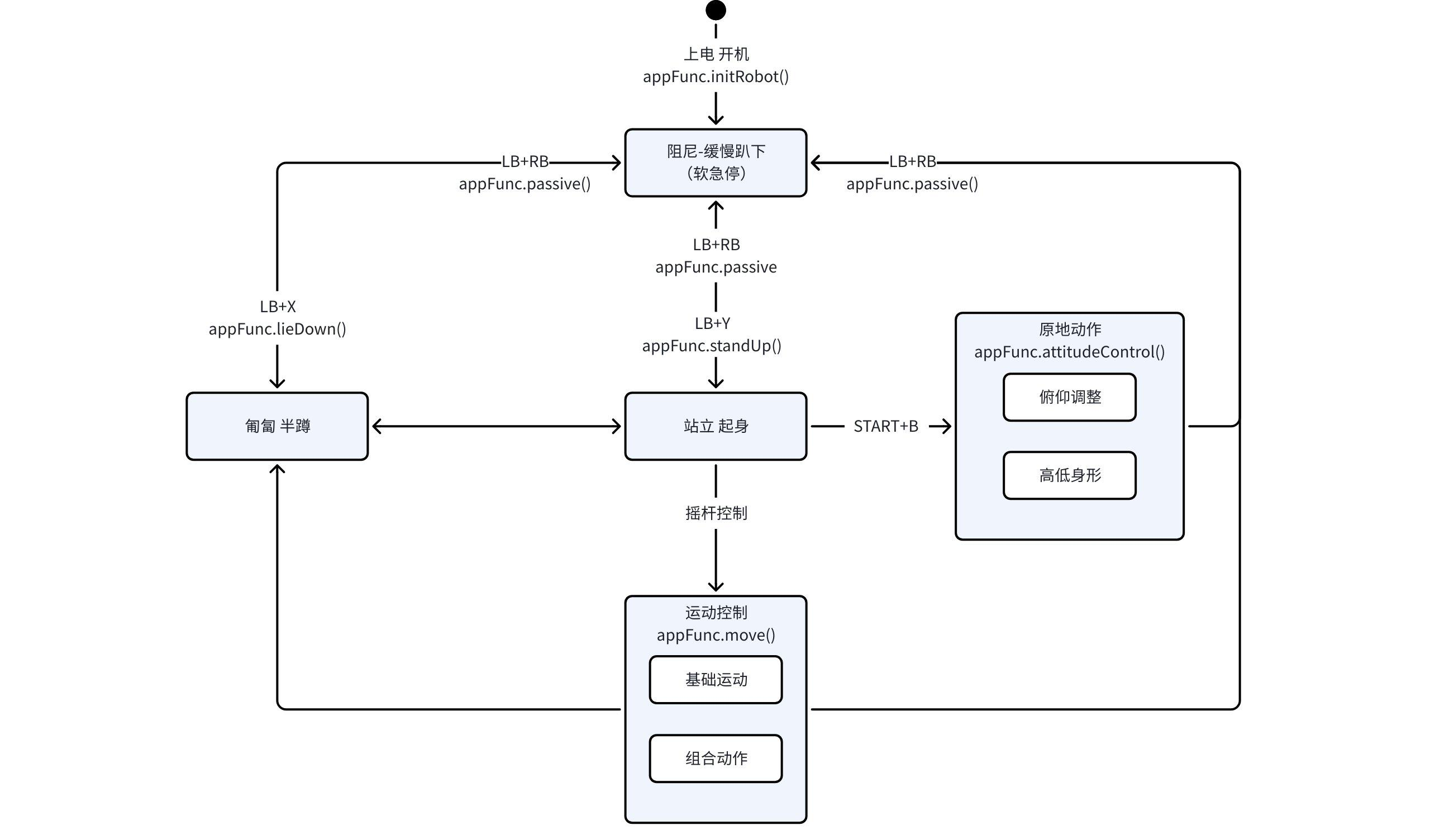

Motion Control State Machine

Instructions need to be issued according to the following state transition logic, otherwise the machine may fall, malfunction, or not respond


Joint Control Command Description

πŸ“Œ Command Order

  • FR (right front)
  • FL (left front)
  • RR (right rear)
  • RL (left rear)

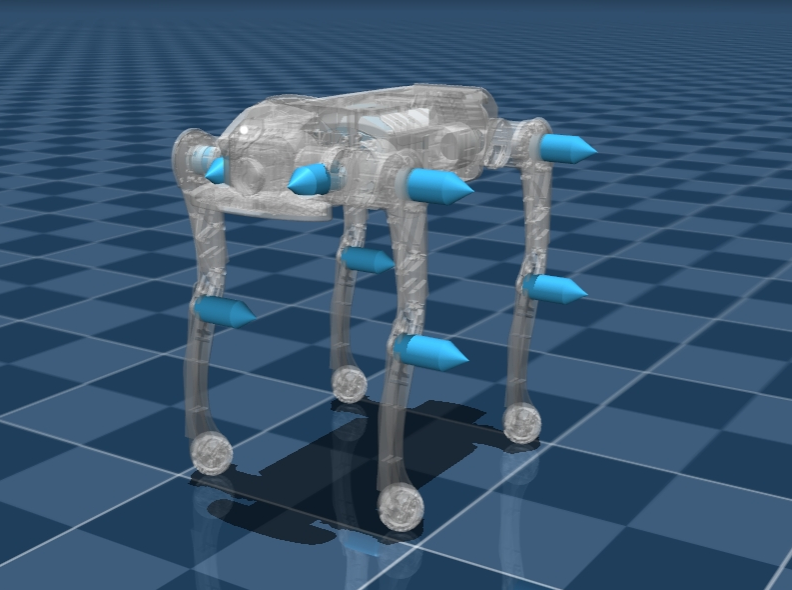

πŸ”„ Joint Direction Definition

  • A, H, K Joint Coordinate System: Forward as X-axis, Left as Y-axis, Up as Z-axis
  • Leg Order: Front-Right, Front-Left, Rear-Right, Rear-Left
  • Rotational Coordinate System: Right-Hand Rule
  • Forward Direction: Positive X-axis; Left Direction: Positive Y-axis; Up Direction: Positive Z-axis alt text

πŸ”§ Control Parameters

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Joint angle commands
float q_des_abad[4] // A joint angle command
float q_des_hip[4]  // H joint angle command
float q_des_knee[4] // K joint angle command

Joint angular velocity commands
float qd_des_abad[4]  // A joint angular velocity command
float qd_des_hip[4]  // H joint angular velocity command
float qd_des_knee[4] // K joint angular velocity command

Joint PID parameters
float kp_abad[4]  // A joint Kp
float kp_hip[4]   // H joint Kp
float kp_knee[4] // K joint Kp

float kd_abad[4]  // A joint Kd
float kd_hip[4]   // H joint Kd
float kd_knee[4]  // K joint Kd

Joint torque commands
float tau_abad_ff[4]  // A joint torque command
float tau_hip_ff[4]   // H joint torque command
float tau_knee_ff[4]  // K joint torque command
